Recover the real requirements
Documentation was incomplete, so expected behavior had to be confirmed from available records, interfaces and structured engineering review.
Start a Project ↗Anonymized case study
Modernizing a legacy industrial monitoring controller.
A representative example of an industrial electronics redesign. Identifying, proprietary and commercially sensitive details have been removed or generalized.
THE SITUATION
A field-proven product needed a supportable path forward.
An aging monitoring and control unit depended on components that were becoming difficult to source. A replacement design was needed to retain the required field interfaces and service workflow without treating the existing hardware as a complete or reliable specification.
Fit the installed environment
The approach had to consider the existing mechanical envelope, power and signal interfaces, wiring and a staged replacement path.
Create evidence before transfer
The immediate objective was a testable replacement prototype, documented interfaces and a practical validation plan—not an unsupported production claim.
ENGINEERING RESPONSE
One coordinated path from unknowns to a testable system.
Electronics, firmware and validation decisions were developed together so each design assumption had a corresponding way to inspect or test it.
Requirements reconstruction
Mapped the existing interfaces, expected behaviors, operating states and fault conditions into a reviewable system definition.
Electronics redesign
Developed a replacement architecture around supportable components, with attention to power, signal integrity, service access and the existing installation.
Firmware adaptation
Structured the control logic and diagnostics to preserve required behavior while improving testability and future maintenance.
Prototype integration

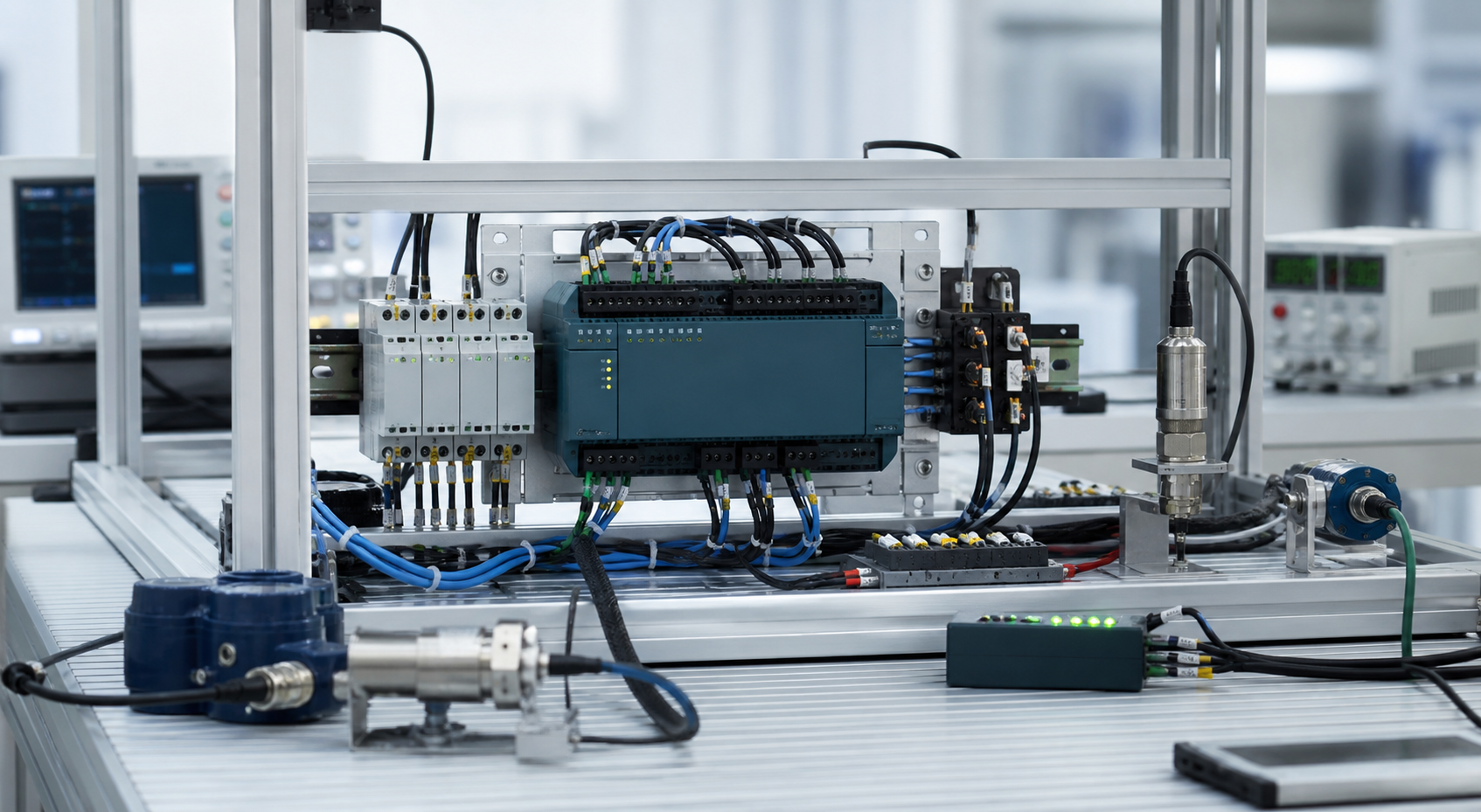

Built an engineering prototype and interface fixtures so electrical, firmware and system assumptions could be checked together.
Validation planning
Defined checks for power-up, inputs and outputs, communications, fault recovery, thermal behavior and regression against agreed requirements.
PROJECT OUTPUT
A clearer, lower-risk route to the next build.
The work produced a functional replacement prototype, a documented interface definition, reviewable electronics and firmware artifacts, and a validation plan for the next engineering phase.
This case illustrates the method and types of deliverables Prismer can support. It does not claim certification, production release or specific performance results.
